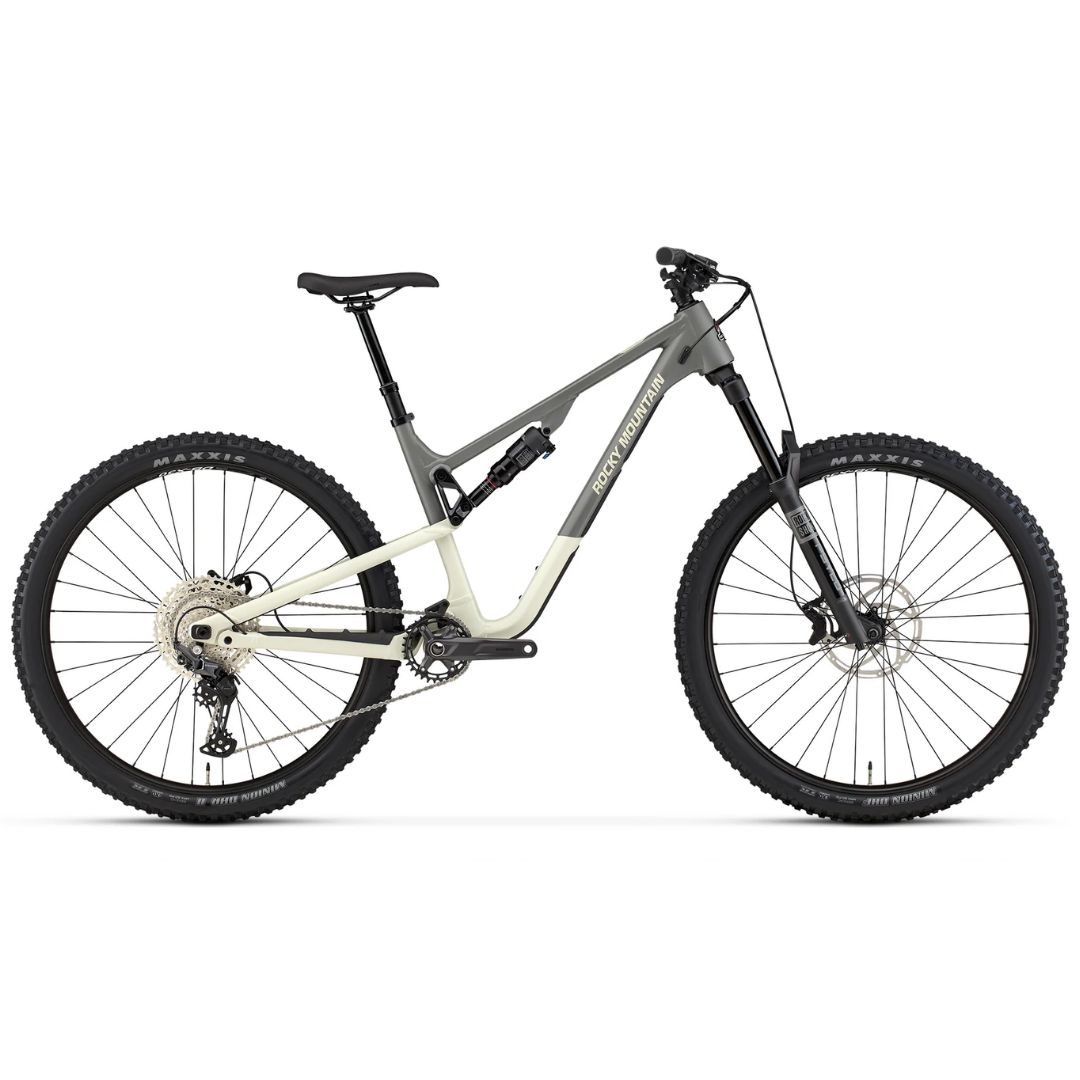

Rocky Mountain INSTINCT A30 (LOCATION 2026)

Frame

FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | SM - XL = 145mm | XS = 140mm | FORM™ Alloy Rear Triangle

Fork

RockShox Psylo Gold RC 160mm | 27.5 = 37mm Offset | 29 = 42mm Offset

Front Travel

160

Shock

RockShox Deluxe Select+ | Linear XL Air Can | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm | Size-Specific tune in FAQ

Rear Travel

145

Headset

FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race

Stem

Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm

Handlebar

Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Grips

Rocky Mountain Lock On Ergo

Brakes

Tektro HD-M535 | Shimano Pad Compatible

Shifters

Shimano Deore 12spd

Rear Derailleur

Shimano Deore 12spd

Cranks & Chainring

Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm

Bottom Bracket

Shimano SM-BBMT500

Cassette

Shimano Deore 10-51T 12spd

Chain

Shimano M6100

Front Hub

Shimano TC500 | 15mm Boost

Rear Hub

Shimano TC500 Boost 148mm

Spokes

2.0 Stainless

Rims

Rocky Mountain TR30 | 32H

Tires

F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready

Seatpost

Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy Clamp Lever | 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm

Saddle

WTB Volt 142 | Steel Rails
